3V Paulo

Home :: Products  ::  3V Paulo

PTCA Ballon Catheter

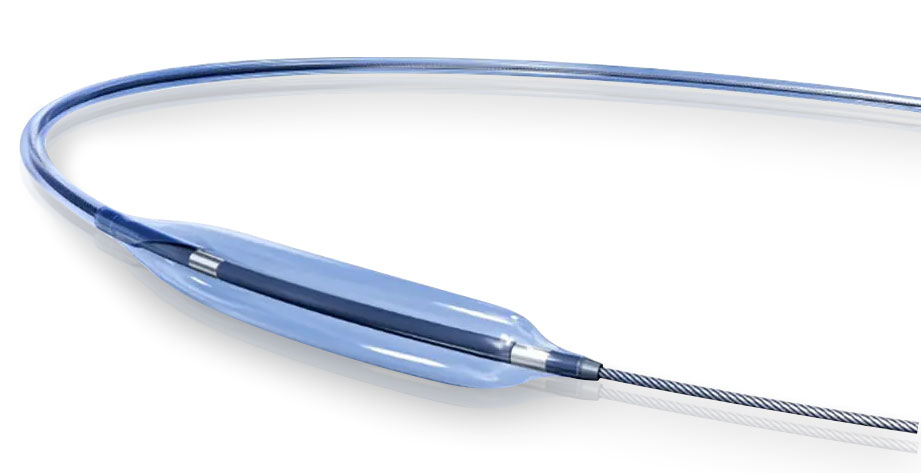

PTCA Balloon Dilatation Catheter

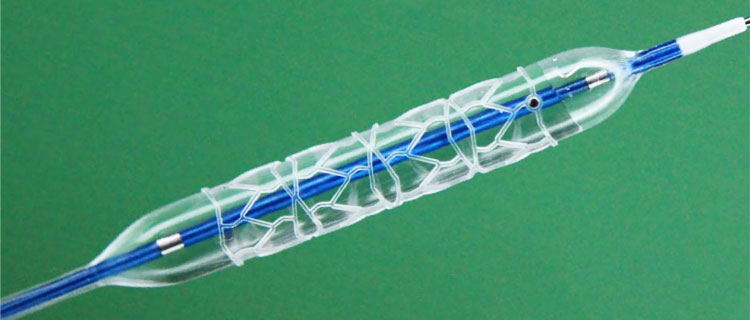

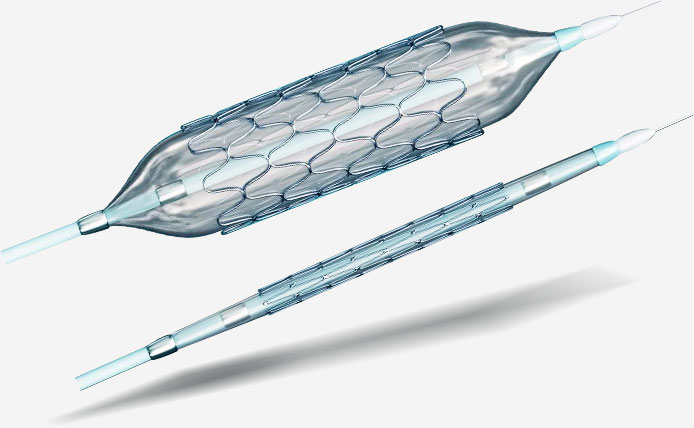

3V Astra Sirolimus Drug Eluting Stent is based on L605 Cobalt Chromium platform and a biodegradable polymer. The Sirolimus used is US FDA approved and is completely released in 10 to 12 weeks. The unique formulation of PLA completely degrades into carbon dioxide and water in 10 to 13 weeks. The Cobalt Chromium platform is made in Germany in a US approved site. The Cobalt Chromium platform has a hybrid design, and the expansion happens from either side of the balloon, the stiffness of the strut is 73 µm and it is one of the lowest in this segment. The proximal shaft is PTFE coated to enhance push ability. The distal shaft is coated with unique Cath silk, hydrophilic coating that enhance cross ability and low friction response to the vessel.

Download Brochure
Download Instruction

How it Works

Percutaneous Coronary Intervention is typically a three-step procedure.

1

A tightly-folded balloon catheter is tracked through the blocked artery.

2

Once the balloon is appropriately located within the blocked artery (i.e. lesion), it is inflated to a pre-fixed size using contrast liquid such as saline. The inflated balloon pushes aside the accumulated plaque (i.e. blockage), to the sides of the artery and thereby re-opens the narrowed artery.

3

The last step involves deflating the balloon, followed by retracting the catheter to restore blood flow.

Product Design

The 3V PAULO Balloon Catheter is designed on a Rapid Exchange (RX) delivery platform, which allows for greater physician control, excellent shaft performance and reduced fluoroscopy time. The ultra-low profile 3V PAULO was designed to enhance lesion access and allow for 6F-Kissing Balloon Technique.

The 3V PAULO Rapid Exchange Balloon Catheter is indicated for improving coronary luminal diameter in patients with symptomatic Ischemic Heart Disease, using either dilatation or stenting techniques. The technical specifications of 3V Paulo Balloon Catheter have been mentioned as follows:

  • 140 CM

    CATHERTER LENGTH

  • 25 CM

    DISTAL SHAFT LENGTH

  • POLYAMIDE

    BALLOON MATERIAL

  • 1.50 - 4.00 MM

    DIAMETERS

  • 5 MM

    TIP LENGTH

Product Benefit

3V PAULO Balloon catheters deliver the promise of exceptional dilatation capability.
Significant developments in 3V PAULO include:

  • Enhanced Crossability and Recrossability

    Flexible tapered tip and lowest lesion entry profile (0.016”), allows for crossing tight occlusions.

  • Comprehensive size matrix

    Designed to track through a wide variety of complex lesions, the 3V Paulo balloon catheter is offered in the following sizes: 1.50 - 5.00 mm low profile balloons.

  • Excellent Pushability

    Enhanced push force and efficiency, due to excellent shaft column strength.

  • Uniform luminal enlargement

    Resulting in accurate inflation/deflation and optimal long-term results.

Enhanced Crossability and Recrossability

Flexible tapered tip and lowest lesion entry profile (0.016”), allows for crossing tight occlusions.

Enhanced Crossability and Recrossability

Flexible tapered tip and lowest lesion entry profile (0.016”), allows for crossing tight occlusions.

Enhanced Crossability and Recrossability

Enhanced Crossability and Recrossability

Flexible tapered tip and lowest lesion entry profile (0.016”), allows for crossing tight occlusions.

Flexible tapered tip and lowest lesion entry profile (0.016”), allows for crossing tight occlusions.

Backed by unmatched technical attributes and quality standards, S3V Vascular’s 3V PAULO Balloon dilatation catheter system creates a new benchmark for Balloon Angioplasties.

Technical Specifications

Delivery System Rapid Exchange
Catheter Length (cm) 140
Distal Shaft Length (cm) 25
Crossing Profile (mm.):
• 1.50 mm diameter
• 2.00 mm diameter
• 2.25 mm diameter
• 2.50 mm diameter
• 2.75 mm diameter
• 3.00 mm diameter
• 3.50 mm diameter
• 4.00 mm diameter
 0.75mm
0.75mm
0.75 +- 0.05mm
0.80+- 0.05mm
0.85+- 0.05mm
0.85+- 0.05mm
0.95+- 0.05mm
1.10+- 0.05mm
Lesion Entry Profile (in.) 0.016
Tip Length (mm) 5
1.50mm crossing profile (in.) 0.029
Balloon Material Polyamide
Nominal Pressure (bar) 6
Rated Burst Pressure (bar):
• 4.0mm (diameter) with lengths > 20mm
• 4.0mm (diameter) with lengths ≤ 20mm
• Balloons below 4mm (diameter)
 14
16
16
Mini Wrap Folds:
• Balloon Diameter: 1.5mm
• Balloon Diameter: > 1.5mm
 2
3
Diameters (mm) 1.50 - 4.00
Min. Guide Catheter ID (Fr.) 5
Max. Guide Wire (in.) 0.014
Lengths 8 - 40mm

Ordering Information

Length in mm Balloon Diameter (mm)
1.50 2.00 2.25 2.50 2.75 3.00 3.25 3.50 3.75 4.00
8 P108 P208 P308 P408 P508 P608 P708 P808 P908 P1008
10 P110 P210 P310 P410 P510 P610 P710 P810 P910 P1010
12 P112 P212 P312 P412 P512 P612 P712 P812 P912 P1012
15 P115 P215 P315 P415 P515 P615 P715 P815 P915 P1015
20 P120 P220 P320 P420 P520 P620 P720 P820 P920 P1020
30 - P230 P330 P430 P530 P630 P730 P830 P930 P1030
40 - P240 P340 P440 P540 P640 P740 P840 P940 P1040
